Overview of Products, Technologies, and Services

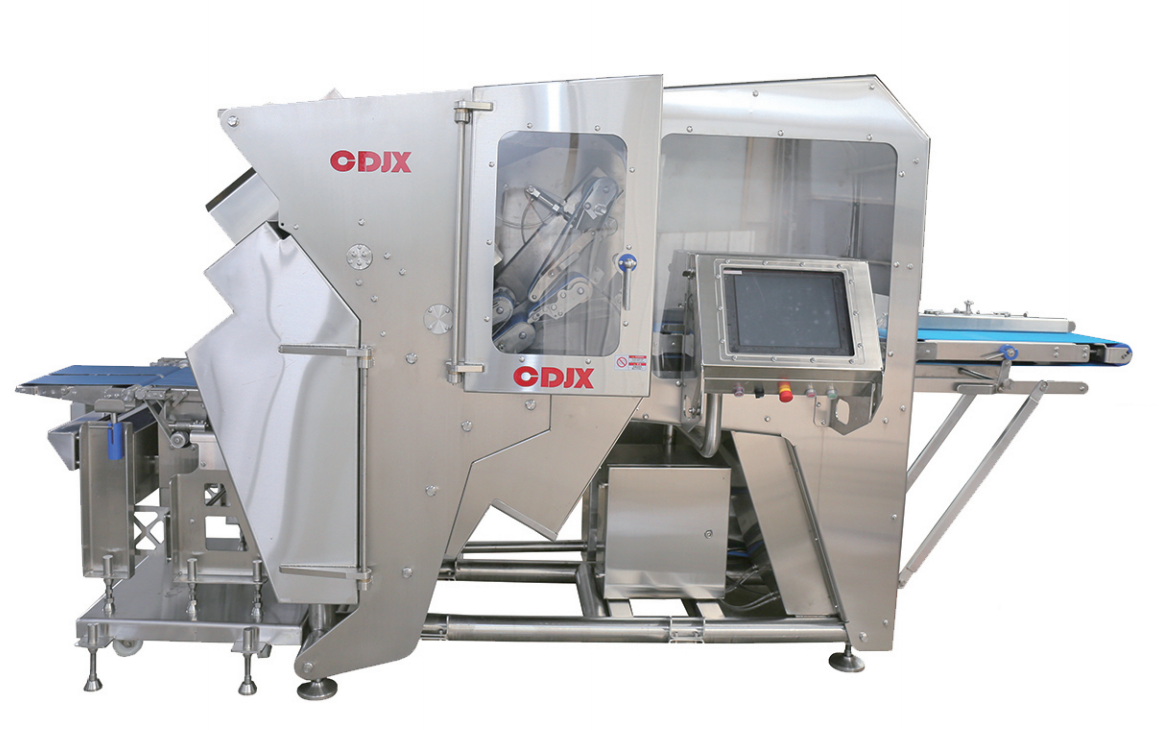

All Transmissions Of This Machine Are Controlled By Servo And Plc, And Each Action Can Be Set Freely To Fully Realize Automated Production.
This Machine Can Be Additionally Connected To a Conveyor Belt And a Packaging Production Line To Achieve Full Automation From Cutting To Packaging.
Equipped with weighing module, it can sort materials with different weights.
Equipped With Portioning Function And Stacking Function.
Equipped With Tailing Discharge Function.
This Machine Can Cut Bacon, Cheese, Ham, Sausage And Streaky Pork.

Product Features

• Voltage&Frequency: 380V/50Hz/3Phase Or According To Customer'sDemands
  Power:18kw
  Capacity:750 Times/Minute
  External Dimensions: 3950 x 1660 x 2080 mm
  Weight:1800kg
• Feeding Size: Width ≤ 330mm, Height ≤ 80mm, Length ≤ 600mm
  Cutting Size: Adjustable Within The Range Of 0.5 ~ 50mm
  Feeding Port Height: 1200mm
  Discharging Port Height: 950mm
• Cutting Temperature for the Frozen Meat:-5°C ~0°C
  Meat Thaw Environment Temperature: -5%C~ -3°C
  Suitable Cutting Temperature: -4°C ~ -2°C
  Material Input Way: Continuously
  Control System: Plc
